Viewing › Eclisse Syntesis SD (Frameless system - 100mm Wall Thickness))

5% off door(s) when purchasing this item

Simply add the door(s) you require to your basket along with this item to receive the discount on checkout

Eclisse Syntesis SD (Frameless system - 100mm Wall Thickness))

Please see product table below for
PURCHASE DETAILS.

A Counterframe system without the need for architraves

Clean, contemporary, minimalist….

When you don’t want to see architraves and jambs, just clean lines of wall/door/wall

An ingenious system that allows you to eliminate the use of architraves.

For safety reasons the dimension PW refers to the actual maximum opening, this is different from dimension A as 80mm of the door should be left protruding from the pocket in all installations. Should the door be adjusted to enter the pocket completely we do not accept any liability.

Doors and plasterboard NOT supplied.

For doors 35 to 40mm thick.

Need help in choosing the RIGHT SIZE? Click here

Syntesis SD PDF

Syntesis Installation

- go back

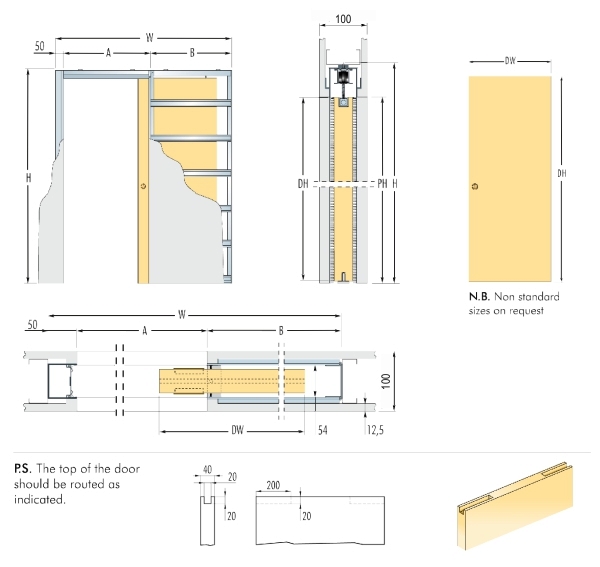

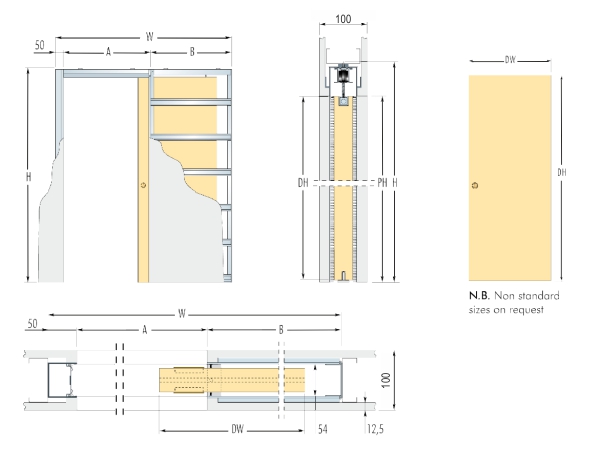

CLEARANCE SIZE (A X PH)	B	OVERALL DIMENSION OPENING W X H	FINISHED WALL	DW	DH	Price (ex vat)
FRAME SIZE				DOOR SIZE
600 x 2048	735	1385 x 2108	100	626	2040	£395.00
700 x 2048	835	1585 x 2108	100	726	2040	£395.00
800 x 2048	935	1785 x 2108	100	826	2040	£395.00
900 x 2048	1035	1985 x 2108	100	926	2040	£404.00
1000 x 2048	1135	2185 x 2108	100	1026	2040	£462.00
584 x 1989	735	1369 x 2049	100	2ft. 0in. x 6ft. 6in. (610 x 1981mm)		£395.00
660 x 1989	835	1545 x 2049	100	2ft. 3in. x 6ft. 6in. (686 x 1981mm)		£395.00
736 x 1989	935	1721 x 2049	100	2ft. 6in. x 6ft. 6in. (762 x 1981mm)		£395.00
812 x 1989	935	1797 x 2049	100	2ft. 9in. x 6ft. 6in. (838 x 1981mm)		£428.00
888 x 1989	1035	1973 x 2049	100	3ft. 0in. x 6ft. 6in. (914 x 1981mm)		£428.00
